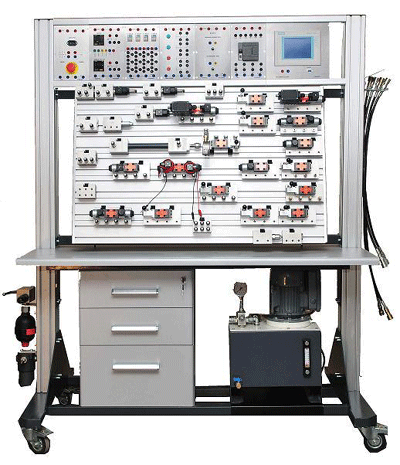

Ferma Hydraulics Training Sets

Equipments In Setr
Tender Specifications




The Hydraulic Training Set covers all possible experiments to be done with Hydraulic technology.
All parts can be attached freely just in seconds on the working desk.
The learner has the possibility to make circuits from basic Hydraulic to PLC controlled Electro-Hydraulic.
The content is freely configurable.
Workstations are suitable to use double-sided, just adding an extra aluminium panel..



The set consists of:

  • Different types of actuators; cylinders and hydraulic motor

  • All types of valves (mechanic, solenoid, proportional)

  • Pressure measurement (digital and mechanic)

  • Flow measurement (mechanic)

  • Hydraulic power unit

  • Mobile workstation with drawer

  • "T" slotted anodised Aluminium panel



The control panel consists of exchangable modules:

  • Power supply

  • Relais module

  • Timer and counter module

  • Light and buton module

  • PLC module

  • Touchscreen module

  • Cables and documentations.

  • The package includes software for PLC and Touchscreen programming.



Available experiments, which can be applied with the sets are;

  • Fundamentals of Hydraulic & Electrohydraulic circuits

  • Power unit setup, oil filter, tank, electric motor, pressure relief valve adjustment

  • Cylinders and hydromotors

  • mechanically actuated directional control valves

  • Speed control valves

  • Pressure adjusting regulators and pressure sequence valves

  • Gas pressurised accumulator use

  • Flow dividers

  • Non return valves

  • Solenoid operated valves

  • Proportional valves

  • Circuit configuration with relays and logic electric moduls

  • Learning the use of industrial programming and communicating with a PLC

  • Learning the use of touchscreen to visualise and control circuits

  • Arrange the related solenoid valves according to sample scenarios

  • Setup and piping of preesurised oil systems, pipes can be installed easilyby quick connections.

  • Understanding the sensor characteristics, as
    Analog pressure sensor
    Mechanical temperature indicator
    Mechanical pressure manometer
    Mechanical flowmeter
    Inductive sensor
    Optic sensor
    Capasitive sensor
