Ferma Industrial Sensor Training Set (FO-ES) |
|
 |
Tecnichal Specifications |
 |
| Tender Specifications |
 |
| |
Industrial sensor training set is arranged with the aim
of investigation of sensors which converts
physical measurements into electrical signals essential
for open/closed loop processes which use programmable
controllers.

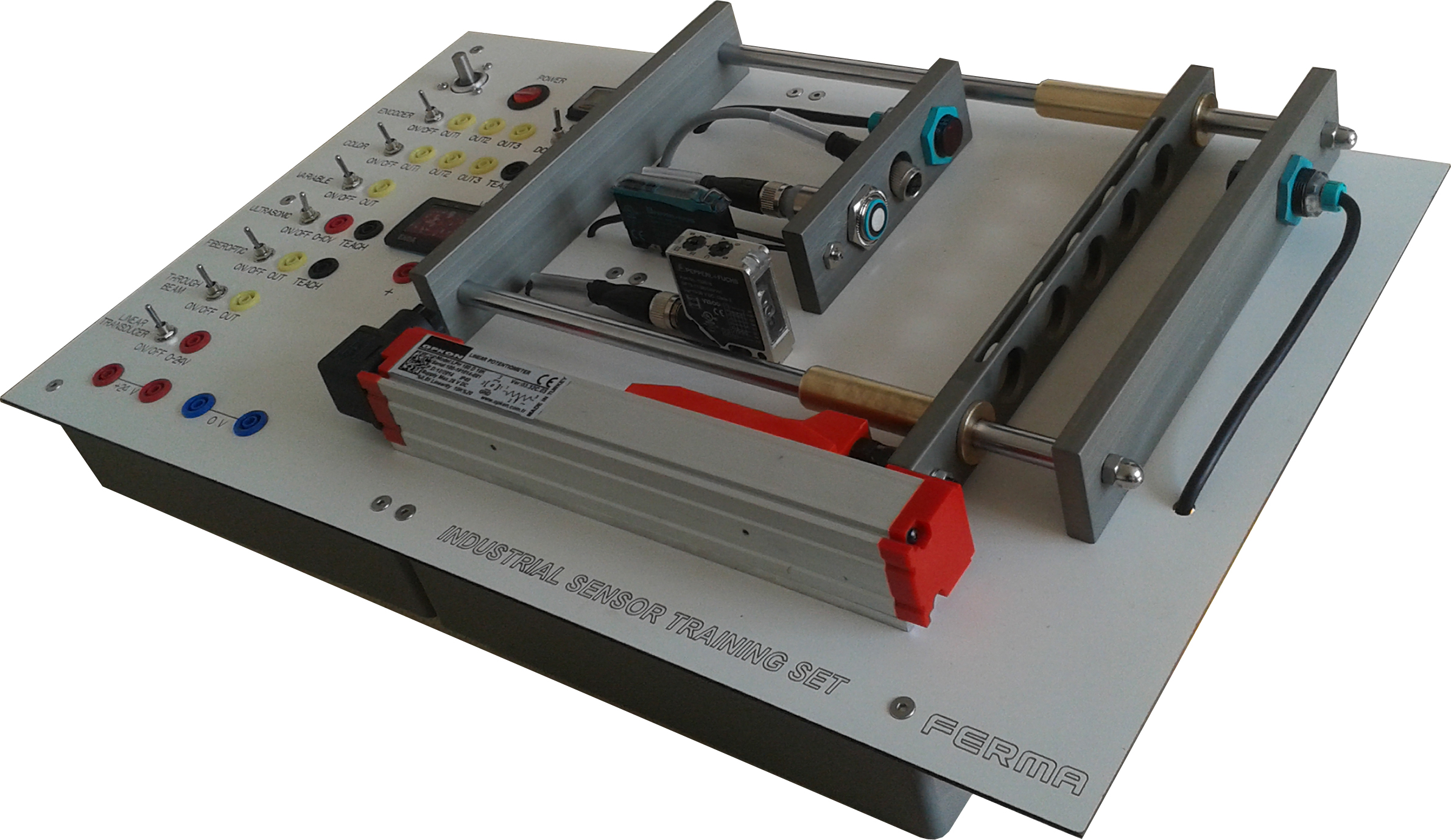

The set consists of control panel, sensors and moving
railed part is designed in a way that facilitates the
practical usage .
The switch, analog and teach I/Os of the sensors are
taken out of the surface of the panel via 4mm banana
sockets
and this makes the set appropriate with PLC use. The
supplies of the sensors are done by 1/0 toggle switches.
The connection ports of voltmeter and the relay outputs
of the counter,
which is added to the set to follow the steps of the
encoder, are also taken out of the surface of the panel
via 4mm banana sockets.
Railed sliding system is connected to the linear
position transducer and this provides user to determine
the distance at which the sensors sense the materials |
|
The system consists of;
-
Digital counter (for encoder)
-
Digital voltmeter ( for sensors with analog
outputs)
-
Railed sliding system (for distance measurement)
-
Various interchangeable material samples (different
colour and material alternatives)
-
Capacitive sensor
-
Inductive sensor
-
Magnetic field sensor
-
Ultrasonic sensor ( 0-10 V analog output)
-
Encoder
-
Linear position transducer (analog output)
-
Fiber optic system
-
Colour sensor
-
Retro-reflective sensor for glass detection
-
Diffuse mode photoelectric sensor (Background
suppression)
-
Through-beam photoelectric sensor
Available experiments, which can be applied with the
sets are;
-
Recognization of various sensors
-
Which sensors respond to which materials?
-
Determination of switching distance, hysteresis and
frequency
|
|
